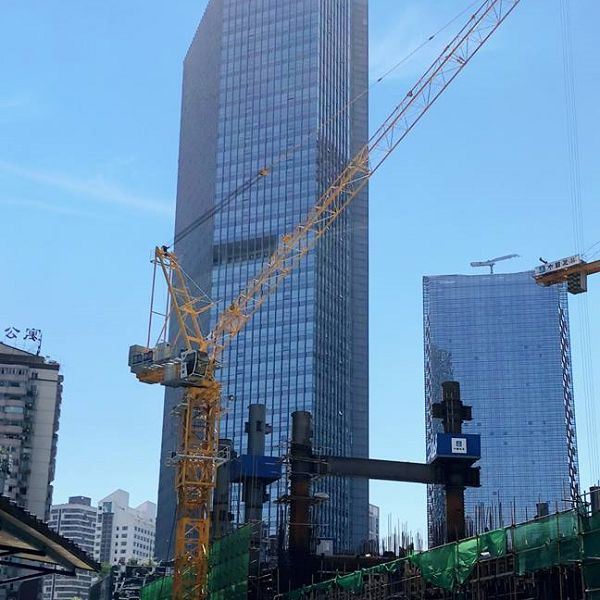

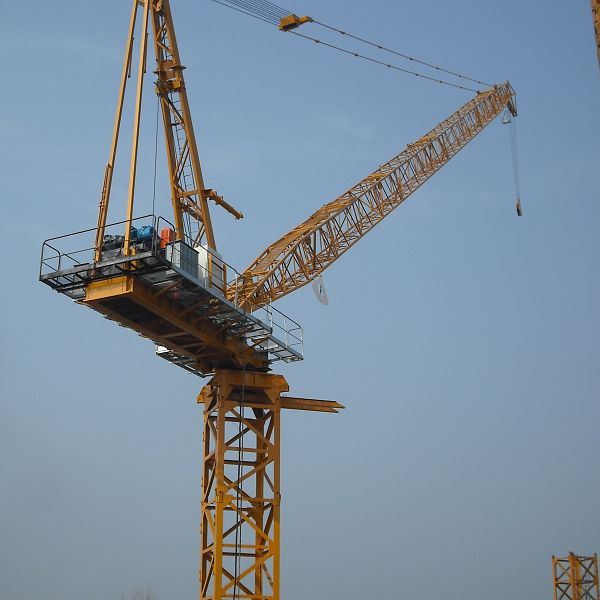

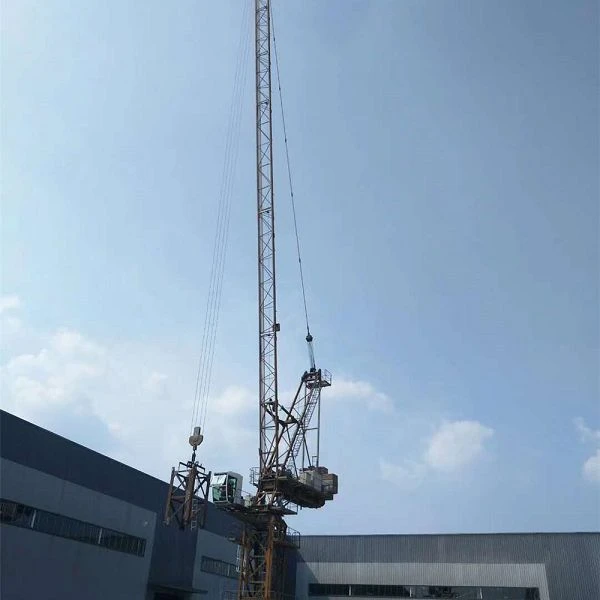

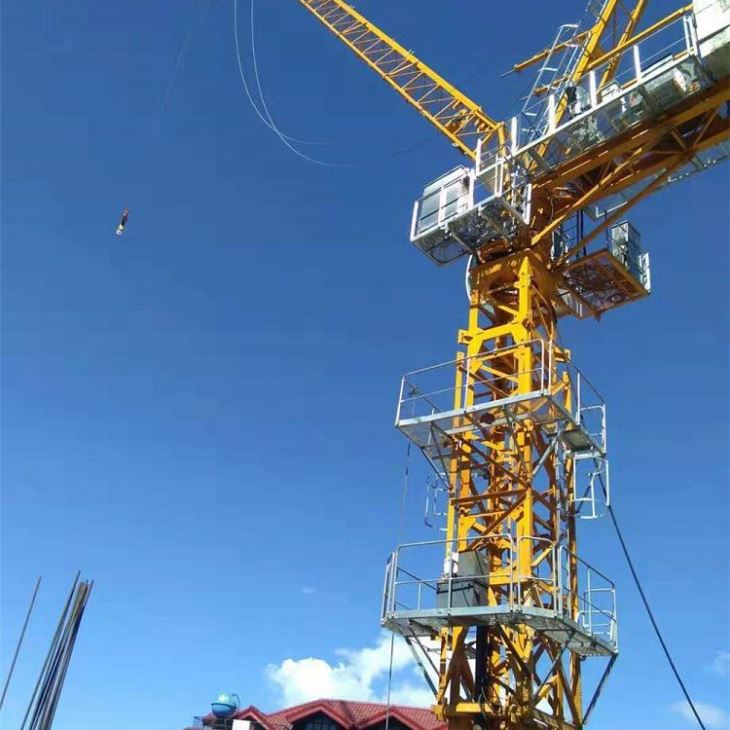

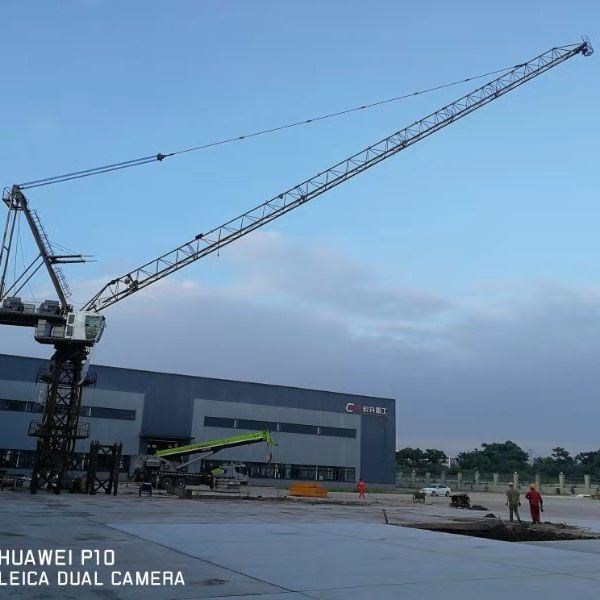

TYB Infra Solutions presents the HSH HSD6038-20T Luffing Jib Tower Crane, a heavy-duty luffing jib tower crane designed for demanding construction applications where high lifting capacity, flexible jib configuration and controlled working radius are essential.
With a maximum rated capacity of 20 Ton and jib configurations ranging from 30 m to 60 m, the HSD6038-20T provides a flexible lifting solution for high-rise, infrastructure, industrial and other major construction projects. The supplied HSH technical documentation provides detailed load charts for each jib configuration.
HSH HSD6038-20T — Key Specifications
| Parameter | HSH HSD6038-20T |
|---|---|
| Brand | HSH / Hongsheng Heavy Industry |
| Model | HSD6038-20T |
| Crane Type | Luffing Jib Tower Crane |
| Maximum Lifting Capacity | 20 Ton |
| Jib Length Options | 30 m / 35 m / 40 m / 45 m / 50 m / 55 m / 60 m |
| Hoisting Falls | 2 / 3 / 4 |
| Hoisting Motor | 90 kW |
| Luffing Motor | 65 kW |
| Slewing Motor | 9 kW × 2 |
| Hoisting Drum Capacity | 650 m |
| Maximum Hoisting Speed | Up to 67.5 m/min depending on reeving/load |
| Luffing Time | ≤ 3 minutes |
| Power Supply | 380 V / 50 Hz |
| Total Power | 173 kW, excluding telescoping |
The mechanism specifications above are taken from the supplied HSH HSD6038-20T technical document.
HSD6038-20T Load Capacity
The HSH HSD6038-20T offers different lifting capacities depending on jib length and working radius.
| Jib Length | Maximum Rated Capacity | Capacity at Maximum Listed Radius |
|---|---|---|
| 30 m | 20 Ton | 14.8 Ton @ 30 m |
| 35 m | 20 Ton | 11.7 Ton @ 35 m |
| 40 m | 20 Ton | 9.7 Ton @ 40 m |
| 45 m | 20 Ton | 7.8 Ton @ 45 m |
| 50 m | 20 Ton | 5.9 Ton @ 50 m |
| 55 m | 20 Ton | 4.7 Ton @ 55 m |
| 60 m | 20 Ton | 3.8 Ton @ 60 m |
These values are based on the load diagram supplied with the HSD6038-20T. Actual allowable lifting capacity must always be determined from the applicable manufacturer’s load chart for the selected configuration and working radius.
Why Choose an HSH Luffing Jib Tower Crane?
1. High Lifting Capacity
The HSD6038-20T provides up to 20 Ton rated lifting capacity in its specified configurations, making it suitable for projects involving heavy structural and construction loads.
2. Flexible 30–60 m Jib Configuration
Different projects require different coverage. The HSD6038-20T can be configured with jib lengths from 30 m to 60 m, allowing the crane to be selected according to the project layout and lifting requirements.
3. Luffing Jib for Restricted Sites
A luffing jib tower crane can be particularly valuable on congested urban construction sites, where maintaining a large horizontal working radius may not be practical.
The luffing configuration allows the jib angle to be adjusted according to the required working radius and site conditions.
4. Suitable for High-Rise Construction
The technical documentation includes multiple anchorage arrangements and climbing configurations for the crane. The illustrated configurations show the crane being progressively anchored/climbed as building height increases.
Applications of HSH HSD6038-20T
The HSD6038-20T can be considered for a wide range of major construction applications, subject to project-specific engineering and configuration requirements.
🏢 High-Rise Buildings
Residential towers, commercial buildings and mixed-use developments.
🏗️ Infrastructure Projects
Large-scale infrastructure and structural construction projects.
🏭 Industrial Construction
Factories, process facilities, warehouses and industrial structures.
🏙️ Congested Urban Projects
Sites where working radius and surrounding buildings require careful crane planning.
🏢 Data Centre Construction
Heavy lifting requirements on large data centre and technology infrastructure projects.
🏨 Commercial & Hospitality Projects
Hotels, commercial complexes and large institutional developments.
HSH Luffing Jib Tower Crane for Sale in India
TYB Infra Solutions offers HSH luffing jib tower crane solutions for customers across India.
Whether you are a:
- Construction company
- Real estate developer
- EPC contractor
- Infrastructure contractor
- Industrial contractor
- Tower crane rental company
- Construction equipment company
TYB Infra Solutions can assist with your HSH luffing tower crane requirement.
Available Support
CRANE SALE
Complete HSH luffing jib tower crane supply.
PROJECT CONFIGURATION
Support in identifying the appropriate crane configuration based on project requirements.
ERECTION & DISMANTLING
Technical support for crane erection, dismantling and related site activities.
COMMISSIONING
Support for installation and commissioning requirements.
SERVICE & MAINTENANCE
Technical assistance for maintenance and operational requirements.
SPARE PARTS
Support for HSH tower crane replacement parts and components.
HSH Tower Crane Service & Spare Parts
Buying a tower crane is only the beginning of the equipment lifecycle. Reliable after-sales service and spare parts availability are essential for maintaining crane uptime.
TYB Infra Solutions can support HSH crane customers with requirements related to:
- Hoisting system
- Luffing system
- Slewing system
- Motors
- Gearboxes
- Brakes
- Wire ropes
- Sheaves and pulleys
- Electrical components
- Limit switches
- Safety components
- Pins and bushes
- Structural components
- Jib components
- Mast components
- Fasteners and related parts
For spare-part identification, customers should provide the crane model, component/part number and photographs, where available.
HSH Luffing Jib Tower Crane in Major Indian Cities
TYB Infra Solutions supports tower crane requirements across India, including major construction markets such as:
Mumbai
HSH Luffing Jib Tower Crane in Mumbai for high-rise, commercial, infrastructure and space-constrained construction projects.
Delhi NCR
HSH Luffing Jib Tower Crane in Delhi NCR for high-rise and major infrastructure developments.
Bengaluru
HSH Luffing Jib Tower Crane in Bangalore for residential, commercial and technology infrastructure projects.
Hyderabad
HSH Luffing Jib Tower Crane in Hyderabad for high-rise, industrial and infrastructure construction.
Chennai
HSH Luffing Jib Tower Crane in Chennai for major commercial, industrial and infrastructure projects.
Pune
HSH Luffing Jib Tower Crane in Pune for residential, commercial and industrial developments.
Kolkata
HSH Luffing Jib Tower Crane in Kolkata for high-rise and infrastructure projects.
Ahmedabad
HSH Luffing Jib Tower Crane in Ahmedabad for commercial, industrial and infrastructure construction.
HSH HSD6038-20T — Technical Highlights
20 Ton Maximum Capacity
Heavy-duty lifting capability for demanding applications.
30–60 m Jib Options
Multiple jib configurations to suit different project requirements.
90 kW Hoisting Motor
Specified hoisting drive for the HSD6038-20T.
65 kW Luffing Motor
Dedicated luffing mechanism for jib movement.
9 kW × 2 Slewing Motors
Dual slewing motor configuration specified in the technical documentation.
650 m Drum Capacity
Specified hoisting drum capacity.
Why Buy HSH Tower Crane from TYB Infra Solutions?
PRODUCT
HSH luffing jib tower crane solutions for demanding construction requirements.
TECHNICAL SUPPORT
Assistance with crane configuration, technical requirements and project applications.
SERVICE
Support for erection, commissioning, maintenance and technical requirements.
SPARE PARTS
Assistance with HSH crane components and replacement parts.
PAN-INDIA SUPPORT
Serving customers and projects across major construction markets in India.
Looking for a 20 Ton Luffing Jib Tower Crane?
If your project requires a high-capacity luffing jib tower crane with a compact working radius, the HSH HSD6038-20T is a solution worth evaluating.
Contact TYB Infra Solutions for:
✅ HSH HSD6038-20T Price & Quotation
✅ Project-specific Crane Configuration
✅ Sale & Supply
✅ Erection & Commissioning
✅ Service & Maintenance
✅ HSH Spare Parts
